Professional customized laser light source
A high-quality beam and a wide range of pulse width adjustment support stable continuous output.
If you are sourcing an industrial laser cleaning machine supplier for large-format work, the CW-H unit removes rust, paint and oil from steel structures, ships and rail components without touching the base material, and it comes from one of the experienced laser cleaning machine manufacturers serving heavy-industry fabrication teams.

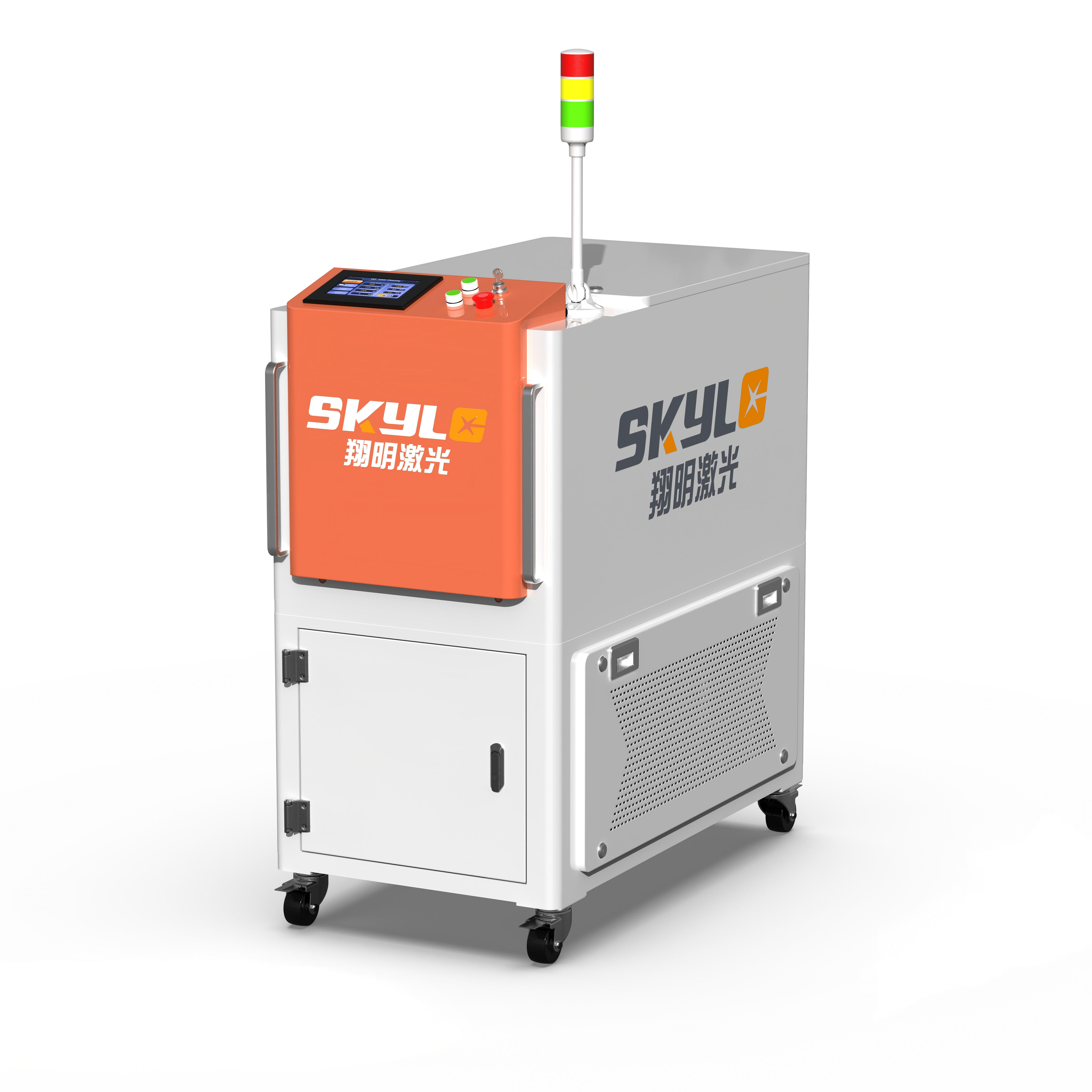

A continuous-wave handheld cleaner offered in four power classes for large-format surface preparation.
Built for steady, high-efficiency work, the CW-H series pairs a professional customized laser light source with a handheld cleaning head, so operators can control the cleaning area and depth without abrasive contact. It is available in CW-H-1500, CW-H-2000, CW-H-3000 and CW-H-6000 models, with water cooling, a 10 m fiber delivery and a scan width range of 5 mm to 200 mm.
Practical engineering choices that shape how this handheld cleaner performs on real jobs.
A high-quality beam and a wide range of pulse width adjustment support stable continuous output.
The higher power ratings are designed for fast cleaning of large-format surfaces and long work areas.

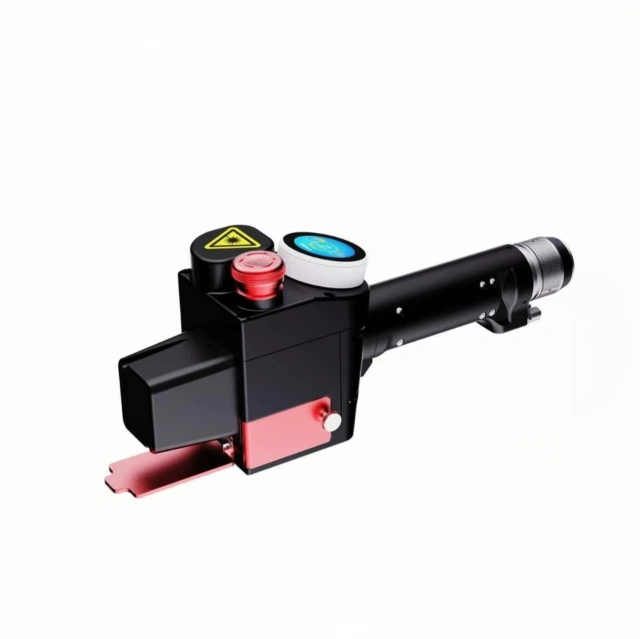

The equipment cabinet and the cleaning head both carry enable buttons and emergency stop buttons.
Handheld results stay close to automated cleaning, with more stable operation and higher precision.
Parameters are listed by model: CW-H-1500, CW-H-2000, CW-H-3000 and CW-H-6000.
| Product Model | CW-H-1500 / CW-H-2000 / CW-H-3000 / CW-H-6000 |
|---|---|
| Laser Power | 1500W / 2000W / 3000W / 6000W (by model) |
| Scan Width | 5 mm – 200 mm |
| Cooling Mode | Water cooling |
| Fiber Length | 10 m |
| Cleaning Head Weight | 1.2 kg / 2.2 kg |
| Net Weight | 170 kg / 215 kg |
| Product Dimensions | L1360 mm × W630 mm × H1600 mm |
| Power Supply | 220V (1500, 2000) / 380V (3000, 6000) |
| Mains Power Frequency | 50Hz |
| Work Temperature | 0℃ ~ 40℃ |
| Power Consumption @25℃ | <6kW / <10kW / <14kW / <28kW (by model) |
※ The above parameters are for reference only, please refer to the actual product.
Continuous handheld cleaning fits large-scale, high-efficiency work where conventional methods are slow or abrasive.
Rust and paint removal, weld cleaning, oxide film removal, and cleaning before steel structure coating.
Rust and paint removal on ships and their components, oil removal, and refurbishment of marine vessel parts.
Refurbishment cleaning of rail transit components where a controlled, non-contact process is required.
Cleaning of municipal pipelines before and after welding, plus refurbishment of steel structural components.
Tell us your material, coating condition and cleaning goal, and our team will recommend the right power class and confirm current lead times.
Keep adjacent product options together for a faster catalog comparison.
Safe, non-contact, and no damage to the base material. Micron-level precision control High applicability and mobility. Suitable for outdoor and high-altitude cleaning.
View product
Peak power pulse laser High-speed scanning system ＆ High-precision control system Single-mode and multi-mode two types Covering nine cleaning processes
View product
High-speed scanning system ＆ High-precision control system Single-mode and multi-mode two types Anti-shaking technology ＆ Light control technology Multiple security measures
View productthe series is offered in cw-h-1500, cw-h-2000, cw-h-3000 and cw-h-6000 models, with laser power of 1500w, 2000w, 3000w and 6000w respectively.
it is applied to large-scale, high-efficiency cleaning such as rust and paint removal on steel structures, rust and paint removal on ships and components, oil removal, and refurbishment of marine vessel, rail transit and steel structural components.
the scan width ranges from 5 mm to 200 mm, the fiber length is 10 m, and the system uses water cooling.
the 1500w and 2000w models use 220v, while the 3000w and 6000w models use 380v, with a mains power frequency of 50hz.
both the equipment cabinet and the cleaning head are equipped with enable buttons and emergency stop buttons, and the laser cuts off automatically when the cleaning head is out of focus.
send your material, thickness and cleaning requirements through the contact page, and the sales team will confirm the suitable model along with the current specification details.
