Product Features
1) Portable & flexible, truly enabling outdoor mobile marking

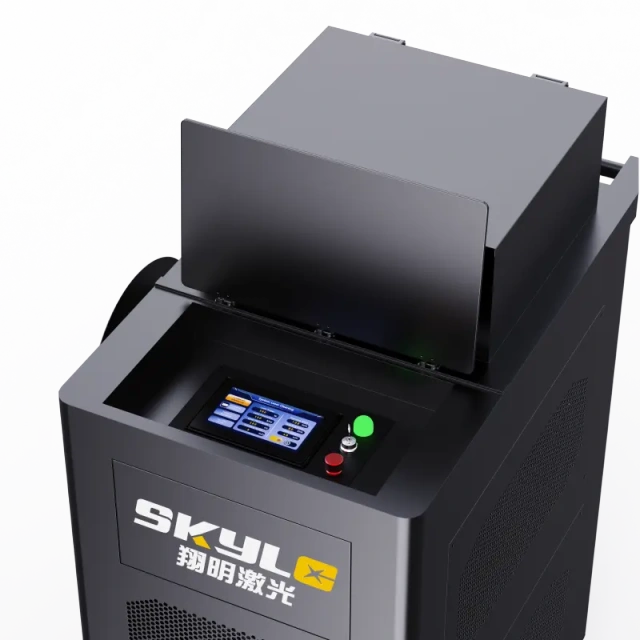

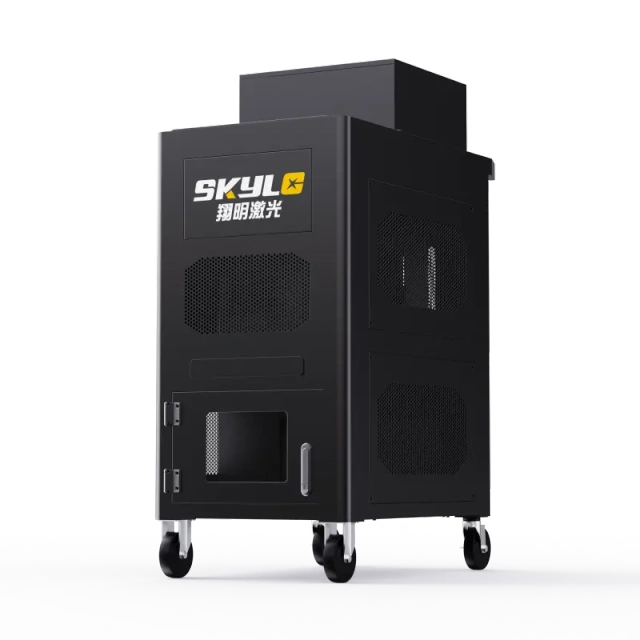

Equipped with large casters and a magnetic focusing fixture, the device enables true outdoor mobile marking without manual focusing. Lightweight handheld design supports operation in confined spaces and on-site mobility.
2) High-power deep engraving, stable and efficient
Featuring a high-peak-power fiber laser, it achieves a single-filled character depth of 0.4 mm in just 9 seconds, enabling permanent marking on metal surfaces. A professional water-cooling module supports 8 hours of continuous and stable operation.
3) Convenient program import, compatible with multiple formats
Supports direct import of marking programs via external USB interface, compatible with a wide range of mainstream file formats. Mark any text, graphics, images, serial numbers, batch numbers, 2D codes, and vector files (BMP, DXF, JPG, PLT, etc.).
4) Automatic code issuance, real‑time communication, production line interconnection
The device communicates in real time with the production back end via a network interface, enabling dynamic updates of marking content. Fully automatic marking reduces manual intervention and significantly improves the overall automation level of the production line.
5) Interface with MES system for easy traceability
The device automatically uploads and stores marking content, time, parameters and other data for convenient traceability. An intelligent verification mechanism prevents duplicate marking within the same batch, strengthening product anti-counterfeiting and quality control.
Product Parameters
| Product Model | SKY-HK300-S |
|---|---|
| Laser Power | 300W |
| Cooling Range | 90mm × 90mm |
| Cooling Mode | Water cooling |
| Fiber Length | 5m |
| Net Weight | 80kg |
| Product Dimensions | L1000mm × W720mm × H1427mm |
| Power Supply | 220V |
| Mains Power Frequency | 50Hz |
| Work Temperature | 0℃ ~ 40℃ |
| Power Consumption @25℃ | ≤2.0kW |
※ The above parameters are for reference only, please refer to the actual product
Application Areas
This equipment is primarily designed for deep marking on a wide range of metal materials, and is widely used in heavy machinery, steel structure, and related industries. Typical applications include deep marking of key structural components (such as standard sections, boom sections, and tower sections) and factory nameplates, as well as full-category steel structural members like H-beams, I-beams, box columns, steel beams, steel supports, embedded parts, and steel structures for tower cranes and construction machinery.
Permanent marking capabilities: text, patterns, serial numbers, batch numbers, 2D codes, barcodes, and vector files in BMP, DXF, JPG, PLT formats. Ideal for deep engraving on automotive frames, forklift components, battery packs, steel components, tower crane elements, and structural steel fabrication.
Permanent marking capabilities: text, patterns, serial numbers, batch numbers, 2D codes, barcodes, and vector files in BMP, DXF, JPG, PLT formats. Ideal for deep engraving on automotive frames, forklift components, battery packs, steel components, tower crane elements, and structural steel fabrication.
