Product Features
1) Remote intelligent control screen
Split-type design display panel for convenient and flexible operation.
2) Dual cooling system
Water cooling + air conditioning cooling, enabling continuous operation even at high temperatures.
3) Various external control interfaces
Equipped with a variety of external control interfaces to support the convenient connection.
4) Easy to integrate with Robots＆CNC systems
It is designed for seamless integration with other automation equipment for efficient automated production lines.
Product Parameters
| Product Model | SKYCL-SPM-100 | SKYCL-SPM-200 | SKYCL-SPM-300 |
|---|---|---|---|
| Laser Power | 100W | 2000W | 300W |
| Scan Width | 5mm-110mm | ||
| Cooling Mode | Water cooling+ Air conditioning | ||
| Fiber Length | 5m | ||
| Cleaning Head Weight | 2.8kg | ||
| Net Weight | 85kg Main Unit 20kg Water Chiller |
||
| Product Dimensions | L1030mm×W400mm×H700mm Main Unit L560mm×W290mm×H445mm Water Chiller |
||
| Power Supply | 220V | ||
| Mains Power Frequency | 50Hz | ||
| Work Temperature | 0℃~40℃ | ||
| Power Consumption@25℃ | <1kW | <2kW | <2kW |
※The above parameters are for reference only, please refer to the actual.
Application Areas
Automated Pulsed Laser Cleaning Machine is mainly used for cleaning various pollutants such as localized rust, paint, coatings, oil stains, natural/artificial oxide films, etc. on metal surfaces, including layered cleaning of paint, precise area selection cleaning of protective coatings, non-destructive cleaning of molds, etc. It can also be used for cleaning before bonding, interlayer cleaning in additive manufacturing, and cleaning of non-metallic surfaces.
Typical application scenarios include manual cleaning of the oxide film before welding the storage tank ring of a launch vehicle, cleaning of the oxide film before and after MIG welding of the aluminum alloy body floor of a rail crossing, cleaning of the black and gray oxide after welding, cleaning of the side panel of the galvanized sheet top cover of an automobile before brazing, cleaning of the KTL coating on the power battery top cover, and cleaning and repairing of the insulator failure layers.
Typical application scenarios include manual cleaning of the oxide film before welding the storage tank ring of a launch vehicle, cleaning of the oxide film before and after MIG welding of the aluminum alloy body floor of a rail crossing, cleaning of the black and gray oxide after welding, cleaning of the side panel of the galvanized sheet top cover of an automobile before brazing, cleaning of the KTL coating on the power battery top cover, and cleaning and repairing of the insulator failure layers.

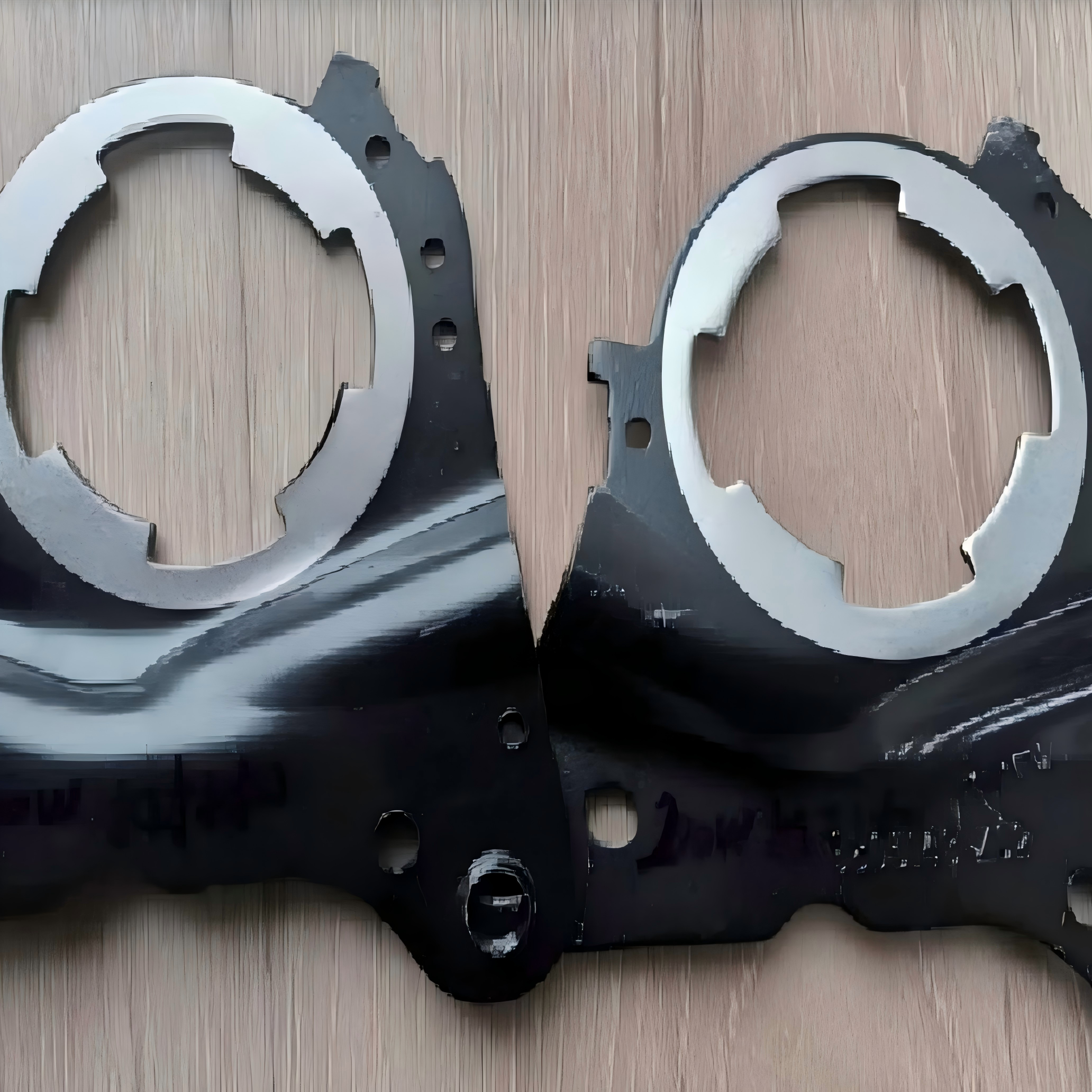

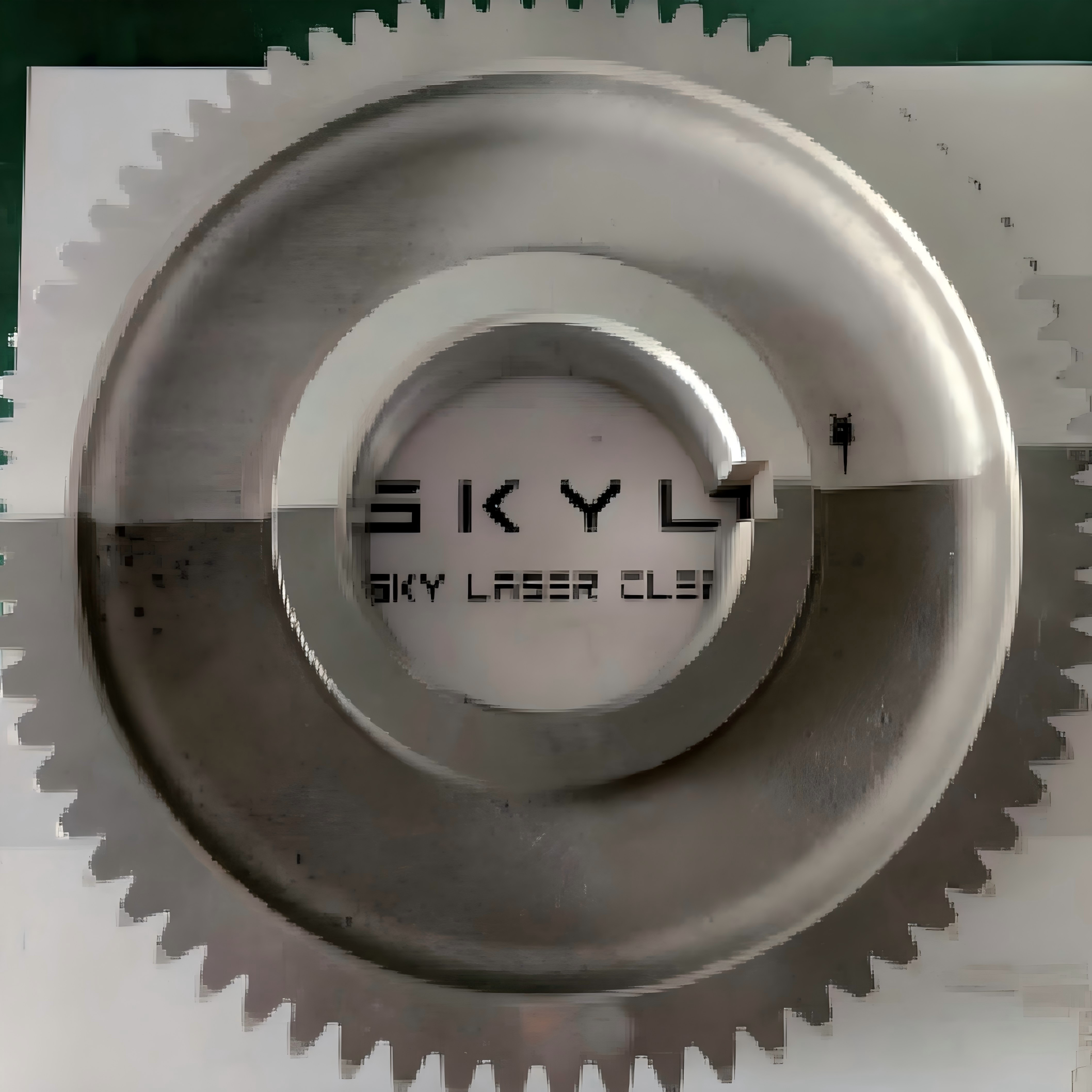

Samples Display
