Product Features
1) High degree of automation
One-key fully automatic cleaning. Automatically identifies wheelset type and dimensions, calls the corresponding laser cleaning path, and automatically selects different laser process parameters.
2) Precise positioning
Effectively avoids damage to non-cleaning areas (such as gearboxes, couplings, shafts, etc.). Cleaning time: 8–20 minutes for a single axle, and 15–38 minutes for a single wheelset (axle + wheel disc).
3) Safe and environmentally friendly
Enclosed working space and synchronized fume extraction & purification system effectively prevent the escape of fumes, paint dust, rust dust, etc., avoiding contamination of the working environment and adverse health effects on operators.
Product Parameters
| Product Model | 500W | 1000W | 2300W | 4000W | 7000W |
|---|---|---|---|---|---|
| Scan Width | 5mm-150mm | ||||
| Cleaning Efficiency | 8-20min Single axle 15-38min Single wheelset (axle + wheel disc) |
||||
| Product Dimensions | L5300mm×W4500mm×H2400mm | ||||
| Power Supply | 380V | ||||
| Mains Power Frequency | 50Hz | ||||
| Work Temperature | 0℃~40℃ | ||||
| Power Consumption@25℃ | 13kW | 15kW | 22kW | 23kW | 43kW |
※The above parameters are for reference only, please refer to the actual
Application Areas
This equipment is mainly used for cleaning coatings, rust, and oil stains on the wheelset surfaces (axles and wheel discs) of EMUs, high-speed trains, subway driving wheels, and trailer cars.

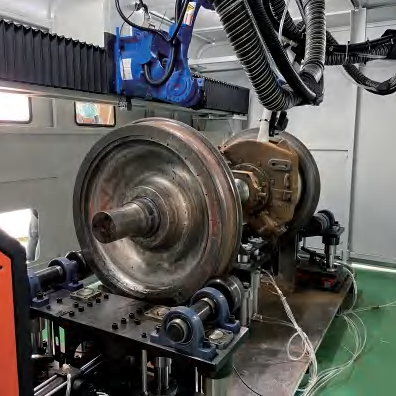

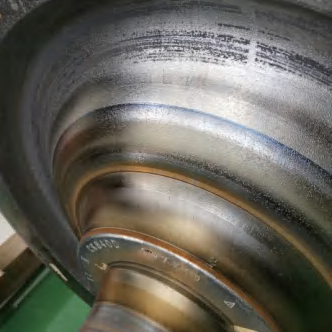

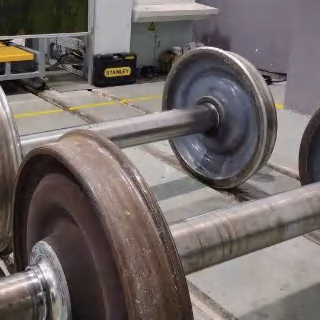

Samples Display
